Good mid to upper RPM torque and HP for +455ci engines with aluminum heads. Fair idle. 3200+ stall. Compression 10.0 to 11.5
When taking first place is a priority, look to the Crane RaceMax camshaft series. Offering aggressive lobe designs with more seat to @ .050" intensity than our PowerMax series, the RaceMax camshaft line is the choice for your race car engine. Crane's RaceMax series a number of different grinds to accommodate applications from bracket racers to alcohol-fueled blown funny cars.
When taking first place is a priority, look to the Crane RaceMax camshaft series. Offering aggressive lobe designs with more seat to @ .050" intensity than our PowerMax series, the RaceMax camshaft line is the choice for your race car engine. Crane's RaceMax series a number of different grinds to accommodate applications from bracket racers to alcohol-fueled blown funny cars.
- Multiple grinds available to suit a range of racing classes.
| Attributes | |
| Advertised Duration Lobe Lift | 0.004 |
| Advertised Exhaust Duration | 304 |
| Advertised Intake Duration | 296 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Cam Type | Hydraulic Flat Tappet |
| Country of Origin (Primary) | US |
| Engine Family | Pontiac 265-455 |
| Engine Manufacturer | Pontiac |
| Exhaust Centerline | 117 |
| Exhaust Closing | 4 ATDC |
| Exhaust Duration at .050 inch Lift | 242 |
| Exhaust Lobe Lift | 0.325 |
| Exhaust Opening | 58 BBDC |
| Exhaust Valve Lfit | 0.488 |
| Grind Number | H-296-2 (REPLACES CCH-296-2) |
| Hazardous Material Code | Y |
| Intake Centerline | 107 |
| Intake Closing | 44 ABDC |
| Intake Duration at .050 Inch Lift | 234 |
| Intake Lobe Lift | 0.315 |
| Intake Opening | 10 BTDC |
| Intake Valve Lift | 0.473 |
| Life Cycle Status Code | Available to Order |
| Lobe Separation | 112 |
| Maximum RPM | 6600 |
| Minimum RPM | 2800 |
| NAFTA Preference Criterion Code | B |
| SDR Required Flag | Y |

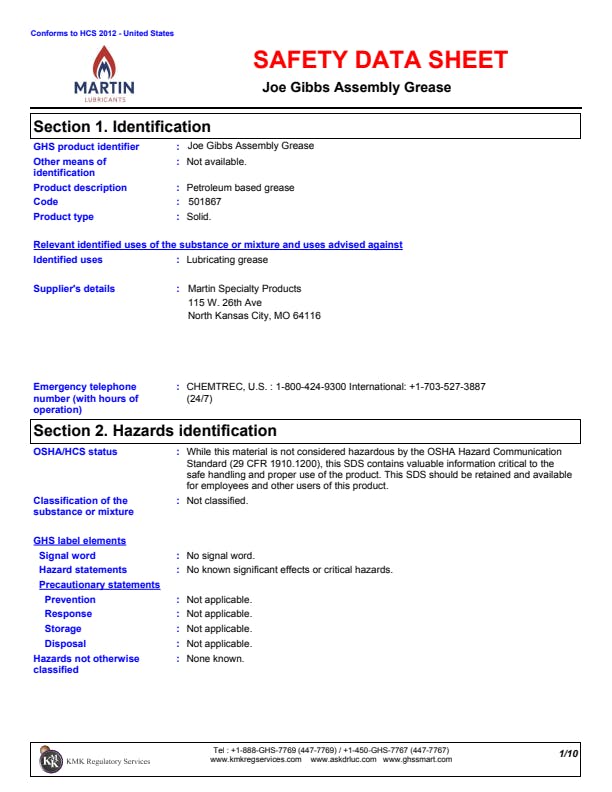

| SDS Sheet Number | AssemblyGreaseSDS |
| Valve Events Lift | 0.05 |
| Valve Events Measurement Point | Lobe |
| Valve Lift Rocker Ratio | 1.5 |
| Warranty Time | 1 |
| GTIN | 00021174011852 |
