12 Volt
QFT's electric fuel pumps are perfect for combinations that are neither stock nor all out race cars. Available in 155-, and 175 GPH models, these pumps flow more than enough fuel to support between 400-750 hp. These pumps draw just four amps of current and are capable of producing 14 psi of maximum pressure ( 30-155), and 18 psi of maximum pressure (30-175). All mounting hardware and brackets are included. • 155 GPH electric fuel pump • Designed for street & drag race applications • Supports up to 600 HP engines • Constructed of lightweight steel and aluminum • 14 PSI maximum pressure • Features 3/8" NPT inlet and outlet ports • Externally accessible pressure relief valve • Draws 4 Amps or less at full load • Recommend external bypass regulator (30-900 or 30-1900) for long duration use • Recommend 30-803 for non-bypass short duration use • Assigned U.S. Patent numbers D645,055, D645,057, and D645,058 • Mounting bracket, hardware, and detailed instructions included
QFT's electric fuel pumps are perfect for combinations that are neither stock nor all out race cars. Available in 155-, and 175 GPH models, these pumps flow more than enough fuel to support between 400-750 hp. These pumps draw just four amps of current and are capable of producing 14 psi of maximum pressure ( 30-155), and 18 psi of maximum pressure (30-175). All mounting hardware and brackets are included. • 155 GPH electric fuel pump • Designed for street & drag race applications • Supports up to 600 HP engines • Constructed of lightweight steel and aluminum • 14 PSI maximum pressure • Features 3/8" NPT inlet and outlet ports • Externally accessible pressure relief valve • Draws 4 Amps or less at full load • Recommend external bypass regulator (30-900 or 30-1900) for long duration use • Recommend 30-803 for non-bypass short duration use • Assigned U.S. Patent numbers D645,055, D645,057, and D645,058 • Mounting bracket, hardware, and detailed instructions included
- 155 GPH Flow Rate
- Constructed of Lightweight Steel and Aluminum
- 14 PSI Maximum Pressure
- Features 3/8" NPT Inlets and Outlets
- Externally Accessible Pressure Relief Valve
- Draws 4 Amps or Less at Full Load
- Designed for Carbureted Applications Only

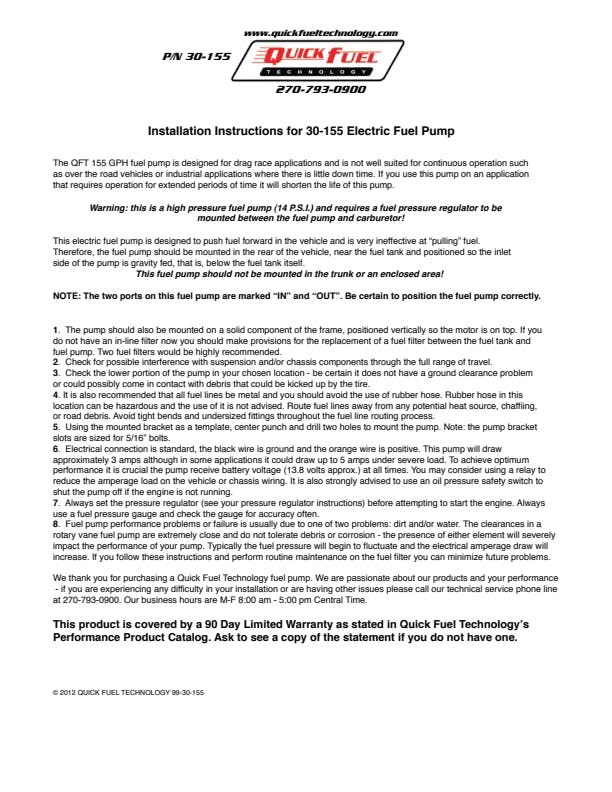

- Mounting Bracket, Hardware, and Instructions Included
| Attributes | |
| ASIN | B00C3VU5D6 |
| Alternate Part Number | 30-155 |
| Average Flow Rating | 155 |
| Brand | Quick Fuel, Quick Fuel Technology |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Air and Fuel Delivery |
| Country of Origin (Primary) | US |
| Emission Code | 5, 5 |
| Free Flow GPH | 155, 155 |
| Fuel Delivery Type | Carburetor |
| Fuel Sending Unit Included | No |
| Fuel Type | Gasoline, Gasoline |
| GTIN | 00849804006869 |
| Gasket Or Seal Included | No |
| Grade Type | Performance, Performance |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Hazardous Material Code | N |
| Inlet Thread Diameter | 3/8, 3/8 |
| Inlet Type | NPT, NPT |
| Internal Or External | External, External |
| Life Cycle Status Code | Available to Order |
| Maximum Amperage Draw | 4, 4 |
| Maximum Pressure | 14, 14 |
| Mounting Bracket Included | Yes, Yes |
| Mounting Hardware Included | Yes |
| NAFTA Preference Criterion Code | B |
| Negative Ground | Yes, Yes |
| Outlet Quantity | 1, 1 |
| Outlet Thread Diameter | 3/8, 3/8 |
| Outlet Type | NPT, NPT |
| Part Type | Electric Fuel Pump, Electric Fuel Pump |
| Product Type | Fuel Pump, Fuel Pump |
| Regulator Included | No, No |
| SDR Required Flag | N |
| Sale Category | Air and Fuel Delivery |
| Strainer Included | No, No |
| Sub Category | Fuel Pumps and Related Components, Fuel Pumps and Related Components |
| Universal Or Specific Fit | Universal, Universal |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Wiring Harness Included | No |
Quick Fuel Technology 30-155QFT 155 GPH Electric Fuel Pump
Product Information
- Brand: Quick Fuel Technology
- Product Number: 30-155QFT
- Availability: Call for Availability
